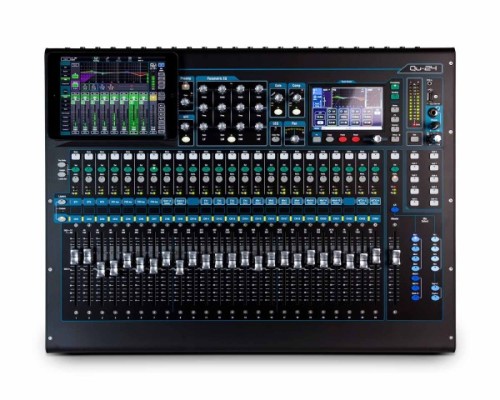

QU24 30-In and 24-Out Dig Mix with Motorised Faders CHROME

"30 In/24 Out Digital Mixer."

Now in a feature-packed new Chrome Edition, Qu-24 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience. Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, Qu-24 has the power and pedigree to deliver class-leading audio performance.

Hot new features include Automatic Mic Mixing and Spectrogram for feedback-hunting, plus upgraded, high contrast metallic finish controls. Whether you’re switching from analogue or updating your digital desk, it’s time to experience the new digital with Qu-24.

Product Specifications

General

• Inputs
  • Mic/Line Inputs:  Balanced, XLR and 1/4" TRS jack, fully recallable
  • Input Sensitivity: (XLR / TRS) -60 to +5dBu / -50 to +15dBu
  • Analogue Gain: -5 to +60dB, 1dB steps
  • Maximum Input: Level (XLR / TRS) +19dBu / +29dBu
  • Input Impedance: (XLR / TRS) >5kΩ / >10 kΩ
  • THD+N, Unity gain 0dB: 0.0005% -89 dBu (20-20kHz, Direct Out @0dBu 1kHz)
  • THD+N, Mid gain +30dB: 0.001% -83dBu (20-20kHz, Direct Out @0dBu 1kHz)
• Stereo Line Inputs
  • ST1, ST2 connector: Balanced, 1/4" TRS jack, half-normalled
  • ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
  • Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu / 0dBu
  • Trim: +/-24dB
  • Maximum Input Level (ST1,ST2 /ST3): +22dBu / +18dBu
  • Input Impedance: >7kΩ
• Outputs
  • Mix1-10 and LR Out: Balanced, XLR
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise: -90 dBu (muted, 20-20kHz)
  • Stereo Alt Out & 2Trk Out: Balanced, 1/4" TRS jack
  • Source (Alt Output /2Trk Output): Patchable / LR post-fade
  • Output Impedance: <75Ω
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise: -90 dBu (muted, 20-20kHz)
  • AES Digital Output: 2 channel, 48kHz sampling rate, XLR, 2.5Vpp balanced terminated 110?
• dSNAKE
  • Inputs: Remote source for CH1-32, ST1, ST2, ST3
  • Outputs: Patchable from Mix1-10, LR, Grp1-8, MTX1-4; Compatible with AudioRacks AR2412, AR84, AB168; Compatible with ME personal mixing system
  • System: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
  • Dynamic Range: 112 dB
  • Frequency Response: +0/-0.5dB 20Hz to 20kHz
  • Headroom: +18dB
  • Internal operating Level: 0dBu
  • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
  • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
  • Meter Peak indication: -3dBFS (+19dBu at XLR out), multi-point sensing
  • Meter Signal indication: -48dBFS (-26dBu at XLR out)
  • Meter Type: Fast (peak) response
  • Sampling Rate: 48kHz +/-100PPM
  • ADC, DAC: 24-bit Delta-Sigma
  • Latency: 1.2 ms (local XLR in to XLR out), 0.7 ms (local XLR in to AES out)
  • Operating Temperature Range: 0 deg C to 35 deg C (32 deg F to 95 deg F)
  • Mains Power 100-240V AC, 50/60Hz
  • Maximum Power Consumption: 82W
• USB Audio
  • Qu-Drive: USB A
  • Stereo Record: 2 channel, WAV, 48kHz, 24-bit, patchable
  • Stereo Playback: 2 channel, WAV, 44.1 or 48kHz, 16 or 24-bit, to ST3
  • Multitrack Record: 18 channel, WAV, 48kHz, 24-bit, patchable
  • Multitrack Playback: 18 channel, WAV, 48kHz, 24-bit
  • USB Audio Streaming: USB B, Core Audio compliant
  • Send (upstream): 24 channel, WAV, 48kHz, 24-bit
  • Return (downstream): 22 channel, WAV, 48kHz, 24-bit
• Control
  • Faders: 100mm motorised
  • Touch Screen: 5" TFT, 800x480 resolution
  • SoftKeys: 10
  • Mute Groups: 4
  • DCA Groups: 4
  • Network: TCP/IP Ethernet for MIDI and iPad app
• Input Processing
  • Source: CH1-32 Local, dSNAKE, or USB; ST1, ST2 Local, dSNAKE, or USB; ST3 Local, dSNAKE, or USB Stereo; USB Global Source Qu-Drive or USB B Streaming
  • Stereo Linking: Odd/even input pairs
  • Parameters linked: EQ, dynamics, insert, delay, assignments, sends
  • Link options: Preamp, polarity, Sidechain, fader/mute, pan
  • Polarity: Normal/Reverse
  • High Pass Filter: 12dB/octave 20Hz – 2kHz
  • Insert: Assign FX1-4 into Input channels
  • Delay: Up to 85ms
  • Gate: Self-key Sidechain
  • Threshold / Depth: -72dBu to +18dBu / 0 to 60dB
  • Attack / Hold / Release: 50us to 300ms / 10ms to 5s / 10ms to 1s
  • PEQ: 4-Band fully parametric, 20-20kHz, +/- 15dB
  • Band 1: Selectable LF Shelving (Baxandall), Bell
  • Band 2, Band 3: Bell
  • Band 4: Selectable HF Shelving (Baxandall), Bell
  • Bell Width: Non-constant Q, variable, 1.5 to 1/9th octave
  • Compressor: Self-key Sidechain
  • Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
  • Attack / Release: 300us – 300ms / 100ms - 2s
  • Knee: Soft/Hard
  • Types: Peak Manual, RMS Manual, SlowOpto, PunchBag
• Mix Processing
  • Channel Direct Out to USB: Follow Fader, follow Mute (global options)
  • Source select (global): Post-Preamp, Pre-EQ, Post-EQ, PostDelay
  • Insert: Assign FX into Mix channels
  • Delay: Up to 170ms
  • GEQ: Constant 1/3 oct, 28 bands 31Hz-16kHz, +/-12dB Gain
  • PEQ: 4-Band fully parametric, 20-20kHz, +/- 15dB
  • Band 1: Selectable LF Shelving (Baxandall), Bell
  • Band 2, Band 3: Bell
  • Band 4: Selectable HF Shelving (Baxandall), Bell
  • Bell Width: Non-constant Q, variable, 1.5 to 1/9th octave
  • Compressor: Self-key Sidechain
  • Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
  • Attack / Release: 300us – 300ms / 100ms - 2s
  • Knee: Soft/Hard
  • Types: Peak Manual, RMS Manual, SlowOpto, PunchBag
• FX
  • Internal FX: 4x RackFX engine, Send>Return or Inserted
• Audio Tools
  • Types Reverbs, Delays, Gated Reverb, ADT; Chorus, Symphonic Chorus, Phaser,Flanger
  • 4 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
  • PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, 85ms Delay
  • Talkback: Assignable to any mix, 12dB/oct HPF
  • Signal Generator: Assignable to any mix, Sine/White/Pink/Band-pass Noise
  • RTA: 31-Bands 1/3 octave 20-20kHz, follows PAFL source

Physical & Dimensions

• Width: 632mm
• Depth: 500mm
• Height: 186mm
• Weight: 14kg
