XSW IEM SET In-Ear Monitoring System 823.2 – 831.8 MHz (Band E) Inc Rack Mount Kit

The XS Wireless IEM set includes everything you need for an easy start with personal monitoring. Defining new standards for simple, flexible, and reliable wireless in-ear monitoring, this system is designed to help you level up your sound, regardless of your tech experience.

Whether a rehearsal or live performance, on a club stage or for a worship service: Benefit from renowned Sennheiser sound and solid pro-grade wireless UHF reliability packed in a convenient and rugged system – letting you focus on playing your best.

Product Specifications

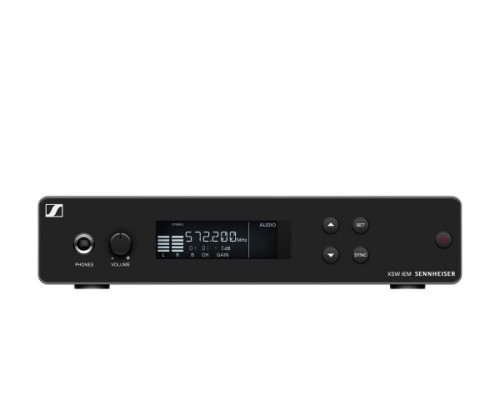

XSW IEM SR - Stereo Transmitter

• RF characteristics
  • Modulation:   FM stereo
  • Frequency ranges (max. RF output power)
    • A: 476 - 500 MHz (30 mW)
    • B: 572 - 596 MHz (30 mW)
    • C: 662 - 686 MHz (30 mW)
    • E: 823.2 - 831.8 MHz (30 mW)
    • K: 925.2 - 937.3 MHz (10 mW)
  • Switching bandwidth:  up to 24 MHz
  • Nominal/peak deviation:  ±15 kHz / ±24 kHz
  • Antenna output:  BNC socket, 50 Ω
• AF characteristics
  • AF frequency response:  45 Hz to 15 kHz

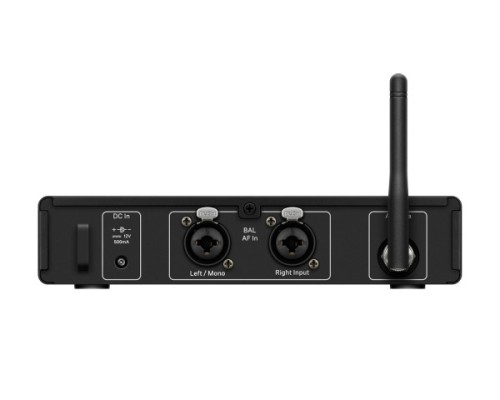

  • AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II):  2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
  • Total harmonic distortion (THD):  <0.9 %
  • Signal-to-noise ratio (at nominal load and peak deviation):  ≥88 dB
• Overall device
  • Temperature range:  0 °C to +40 °C
  • Input rating:  +12 V DC
  • Current consumption:  Approx. 400mA (depending on volume level)
  • Dimensions:  Approx. 200 x 128 x 42 mm
  • Weight:  Approx. 700 g

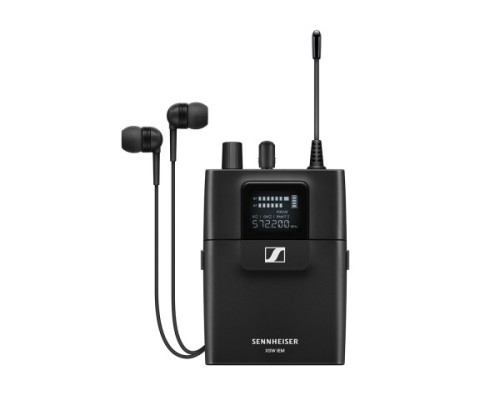

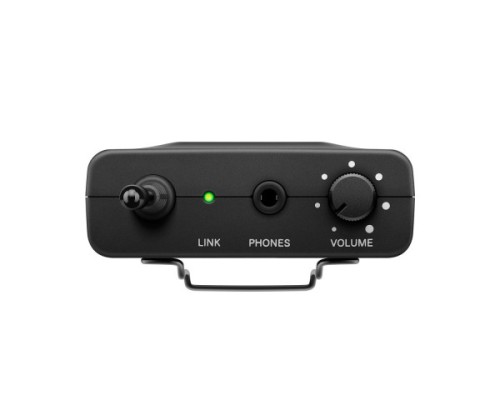

XSW IEM EK - Stereo Receiver

• RF characteristics
  • Modulation:  Wideband FM
  • Frequency ranges
    • A: 476 - 500 MHz
    • B: 572 - 596 MHz
    • C: 662 - 686 MHz
    • E: 823.2 - 831.8 MHz
    • K: 925.2 - 937.3 MHz
  • Switching bandwidth:  up to 24 MHz
  • Nominal/peak deviation:  ±15 kHz / ±24 kHz
  • Squelch:  10 µV, fixed
• AF characteristics
  • Signal-to-noise ratio (1  mV, peak deviation):  ≥88 dB
  • Total harmonic distortion (THD):  ≤ 1 %
  • AF output level at 3.5 mm:  2 x 1,25 Veff at 16 ?
  • High Boost (EQ):  +10 dB at 13 kHz
  • Limiter:  -10 dB
  • AF frequency response:  45 Hz to 15 kHz
  • Cross talk (50 Hz - 10 kHz):  typically 45 dB
• Overall device
  • Temperature range:  0 °C to +40 °C
  • Power supply:  2 AA batteries, 1.5  V
  • Nominal voltage:  3  V battery
  • Operating time:  Approx. 6 hrs (depending on volume level)
  • Dimensions:  Approx. 95 x 70 x 26 mm
  • Weight (incl. batteries):  Approx. 110 g

IE 4 - In-ear headphones

• Transducer:  dynamic
• Frequency response:  40-20.000 Hz
• SPL (1 kHz, 1 mW):  106 dB
• Nominal impedance:  6 Ω
• Cable length:  1.4 m
• Connector:  3.5 mm (1/8“) stereo plug, gold-plated
• Temperature:  –5 °C (23 °F) to +50 °C (122 °F)
