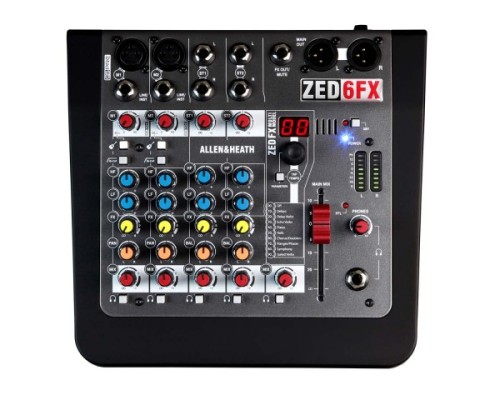

ZED6FX 2-Mic/Line 2 Stereo i/p Console with 60mm Faders

"Compact 6 Input Analogue Mixer with FX."

ZED-6FX delivers Allen & Heath’s renowned build and audio excellence in a compact, portable format, making it the ideal choice for quality conscious musicians, singer / songwriters and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6FX is a versatile companion for every step of the creative journey. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. ZED-6FX is the first mixer to include a specially created suite of studio quality reverbs, delays and special multi-model FX, crafted by Allen & Heath’s acclaimed in-house effects aficionados. Guitarists will be pleased to know that ZED-6FX comes with a pair of Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.

Product Specifications

General

• Input

  • Mono channel (XLR) Input (For Nominal 0dBu) -5dBu to –60dBu (+13dBu maximum)
  • Mono channel Instrument/Line Input (Jack socket) +14dBu to -40dBu (+17dBu maximum)
  • Stereo Input (Jack sockets) 0dBu nominal (control = Off to +15dB Gain)
• Output
  • L/R Outputs (XLR) 0dBu (+18dBu maximum)
  • FX Output (Jack socket) 0dBu (+18dBu maximum)
• Frequency Response
  • Mic in to Mix L/R Out, 30dB gain 10Hz to 20kHz +0.5/-1dB
  • Instrument/Line in to Mix L/R out 0dB gain 10Hz to 20kHz +0.5/-1dB
  • Stereo in to Mix L/R out 10Hz to 20kHz +0.5/-1dB
• THD+n
  • Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHz Filter) 0.0025%
  • Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) 0.006%
  • Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter) 0.03% 2nd Harmonic
  • Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter) 0.0025%
• Headroom
  • Analogue Headroom from nominal (0Vu) 18dB
• Noise
  • Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) -127dBu
  • Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) -94dBu
  • Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter) -91dBu

Physical & Dimensions

• Height: 88.9mm
• Width: 249mm
• Depth: 236.4mm
• Weight: 1.4kg
